Problem
-
How do I change the time on the signage devices?
-
The time on the tablets is a few minutes out. How do I correct this?
-
The time is incorrect on my tablet or kiosk. What do I do?
-
My device is in the wrong time zone. How do I change this?
-
Why can I check in to a booking on the Signage app, but then get an error message stating that the booking can’t be started at this time?
Solution
To resolve the incorrect time, including time drift, on your devices depends on your hardware options:
-
Hardware as a Service (HaaS) or you got your hardware through Matrix Booking and have Mobile Device Management (MDM).
-
HaaS or you got your hardware through Matrix Booking and don’t have MDM.
Regardless of what the hardware option you picked, you should make sure that your organisation has our servers as approved endpoints where applicable.
With MDM
If your room signage or kiosk devices are showing the incorrect time, this is normally because the devices are blocked from looking for the current time using a firewall.
Matrix Booking can push time zone changes via MDM if you have our Hardware as a Service subscription. For this to work, your organisation needs to make sure that all of Matrix Booking’s endpoints including the NTP server (the time server described above) are approved endpoints. Otherwise, it could affect the time displayed on your devices.
When the devices are sent out to your organisation, they are set up to reach out to one of the international time servers constantly. These Android devices normally use: *.pool.ntp.org. Sometimes they will be set with 2.android.pool.ntp.org or something similar, but it will normally always be a variant of *.pool.ntp.org unless you’ve requested a specific server.
If your devices are locked to a Matrix Booking app using our Hexnode MDM kiosk software, you need to:
-
Go to the Android settings screen.
-
Change the time zone settings.
-
To re-enter kiosk mode, open the Hexnode MDM application
-
Select Activate.
If you’re unable make the time server an approved endpoint or you’re having issues exiting kiosk mode, raise a support ticket and our Hardware Team will help you.
Without MDM
If you’ve opted to not use our MDM software, raise a support ticket and our Hardware Team will help you.
Your own hardware
If you’ve opted to purchase your own hardware, raise a support ticket and our Hardware Team will help you.
Servers you should have as approved endpoints
The table below shows the full list of application endpoints that you need to include in the allowed or trusted list to fully utilise the Matrix Booking applications on a closed network. If any endpoints aren’t in your allowed or trusted list, you may have issues with the service related to the endpoint.
|
Rule |
Server name |
Direction |
Application |
Port and protocol |
Notes |
|---|---|---|---|---|---|
|
Matrix Booking app endpoints |
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Matrix Booking data. |
|
|
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Organisation logo. |
||
|
Outbound |
Signage |
443/TCP (HTTPS) |
Event based communication. |
||
|
Android NTP |
Outbound |
Floor plan
|
123/UCP (NTP) |
Time and date server. |
|
|
Hexnode MDM |
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Hexnode app updates. |
|
|
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Hexnode client portal. |
||
|
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Hexnode app updates and delivery. |
||
|
Hexnode remote view |
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Hexnode remote view. |
|
|
Outbound |
Floor plan
|
443/TCP (HTTPS) |
Hexnode client portal. |
||
|
Outbound |
Floor plan
|
3478/TCP
|
Hexnode remote view. |
||
|
Outbound |
Floor plan
|
3478/TCP
|
Hexnode remote view. |
||
|
Hexnode push notifications |
Outbound |
Floor plan
|
1883/TCP
|
Hexnode remote view: receive push notifications via MQTT. |
|
|
Outbound |
Floor plan
|
1883/TCP
|
Hexnode remote view: receive push notifications via MQTT. |
||
|
|
Outbound |
Floor plan
|
5228/TCP
|
Remote view persistent connection. |
|
|
Outbound |
Floor plan
|
5228/TCP
|
Remote view push notifications. |
Time drift

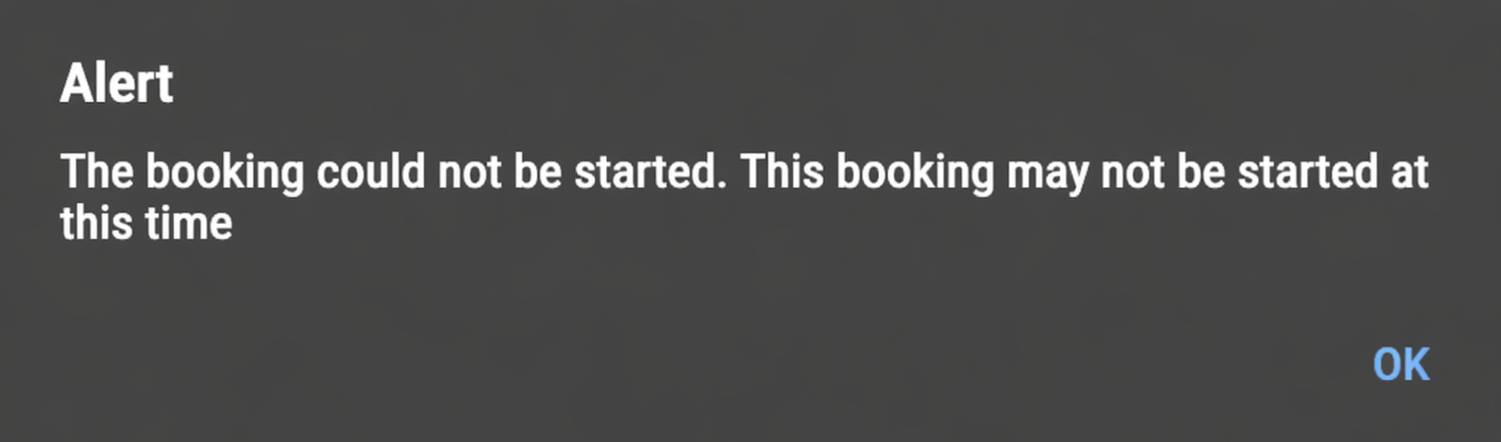

Time drift is where a device’s time is no longer correct. What may happen as a result of time drift is that the Signage app gives you the option to check in to (start) a booking, but the device gives you an error message stating that the booking can’t be checked in to:
To fix this, the device will likely need to be taken out of kiosk mode before changing the device’s time.
